MendaudioGIGA Premium Power Quality Rechargeable 9V DC Battery Pack for Guitar/Bass Pedals
Introducing the MendaudioGIGA Premium Power Quality 9V DC Rechargeable Battery Pack for Guitar/Bass Pedals. Each device is hand-assembled for final safety and quality checks. The Li-Ion Hybrid Battery Cells are built in Japan and come with advanced safety protection circuits, including overvoltage protection, overcurrent protection, overtemperature protection, undervoltage protection, undercurrent protection, under temperature protection, reverse polarity protection, and short-circuit protection.
The manufacturing energy capacity stated on marketing materials is 6800 mAh, but the effective energy capacity for guitar pedals is 2200 mAh. The maximum voltage is 4.18 Volts, and the minimum voltage is 3.0 Volts. The maximum operating temperature is 80 degrees C, while the minimum operating temperature is -20 degrees C. The projected lifespan is 1000 full charge/discharge cycles.

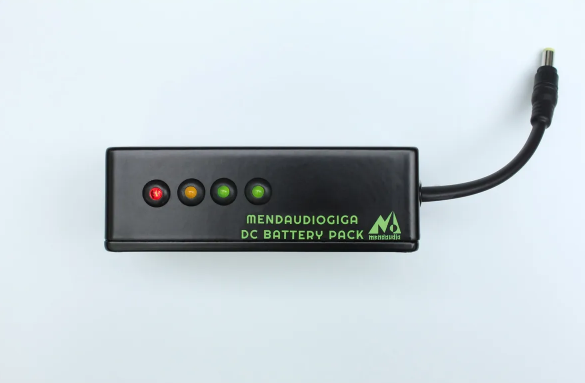

The device features a highly efficient analog hardware design with 4 LEDs, allowing musicians to easily monitor the remaining power. It also includes a superior high-quality DC-DC boost converter with less than 25 mV DC ripple on the output. Based on uninterrupted power supply design from the automotive industry, the maximum stable discharge current is 200 mA, and the voltage output is 9 Volts.
The battery pack supports automated charge and discharge operation and can be charged from AC/DC adaptors, laptop USB-A port, or any other USB-A source. It takes 6 hours for a full charge with a fast USB-A charging device. With typical digital pedals drawing about 50 mA, a pedal board with 4 pedals will have a total instantaneous current consumption of 200 mA. With an effective capacity of 2200 mAh, the product will work for 11 hours.
Customers have reported experiencing better guitar sound from their pedals, both live and in the studio. They have described the sound as "creamier" and "smoother." The device does not require an isolated power supply design as the Battery Pack is not connected to the AC Grid, eliminating any nasty line-level noise artifacts from the AC grid. Additionally, there are no long AC/DC power cables to unwrap and wrap for live shows, allowing musicians to play anywhere.
The device comes with a Charging Cable and instructions. It's important to note that the switch must be in the ON position to charge. When the switch is in the OFF position, the battery cell is completely disconnected from the circuit.
